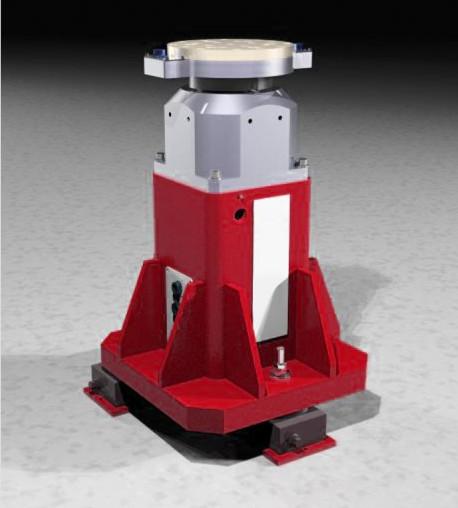

The single-axis turntable is a high-precision single-axis rate test device, which is used for position, rate, and swing tests and inspections of rate

  • 1
  • 2

Brand Name : FOVA

Model Number : 1FV300

Certification : CE;FCC

Place of Origin : SHENZHEN

MOQ : 1

Payment Terms : T/T

Supply Ability : 1000PCS/Months

Delivery Time : 25 work days

Price : Negotiable

Material : Aluminum Alloy

Control Method : Manual or Motorized

Rotation Accuracy : 0.01 degrees

Mounting Holes : M6 tapped holes

Platform Size : 100 mm

Operating Temperature : 0-50 degrees Celsius

Drive Mechanism : Gear Drive

Bearing Type : Crossed Roller Bearing

Weight : 1.5 kg

Rotation Speed : 0.1-10 rpm

Encoder Resolution : 0.001 degrees

Stepper Motor : 1.8 degree step angle

Rotation Range : 360 degrees

Load Capacity : 30 kg

Contact Now

QUALIFICATIONS

Industry advantage

The team has more than 30 years of experience in developing national defense special test equipment

Provide a number of models of inertial fax test equipment at home and abroad.

 Index 1FV300 1 FV 500 1 FV 700 1FWV300 1FWV500 1FWV700 Unit
Structural form Vertical Vertical Vertical Vertical Vertical Vertical /
Maximum load weight 30 30/50 50/70 Optioanl 30 30/50 50/70 Optioanl Kg
Table size Φ300 Φ500 Φ700 Φ300 Φ500 Φ700 mm
Mesa flatness 0.02 0.03 0.03 0.02 0.03 0.03 mm
Table height 350 650 850 350 650 850 mm
Face runout 0.05 0.05 0.05 0.05 0.05 0.05 mm
Rotation accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″
Angular position range ±0〜 ±360 ±0 〜 ±360 ±0 〜 ±360 ±0〜 ±360 ±0 〜 ±360 ±0 〜 ±360 °
Angular position accuracy ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ±1~3 ″
Angular resolution 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
Angular rate range 0.001〜10000 0.001〜3000 0.001〜3000 0.001〜10000 0.001〜3000 0.001〜3000 °/s
Angular rate accuracy ω＜1 ω＜1 ω＜1 ω＜1 ω＜1 ω＜1 °/s

1<ω＜10

10<ω

1<ω＜10

10<ω

1<ω＜10

10<ω

1<ω＜10

10<ω

1<ω＜10

10<ω

1<ω＜10

10<ω
Speed smoothness

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1 × 10 -3

1 × 10 -4

5 × 10 -5

1° Average

10° Average

360 ° Average
Max angular acceleration 10000 4500 3000 10000 4500 3000 °/s2(Optional)
Rocking function Optional Optional Optional Optional / /
Rate resolution 0.0001 0.0001 0.0001 0.0001 0.0001 0.0001 °
Slip ring number 10~50 10~50 10~50 10~50 10~50 10~50 (Optioanl)
System bandwidth 5~ 100Hz 5~80Hz 5~80Hz 5~ 100Hz 5~80Hz 5~80Hz Hz(Optioanl)
Slip-ring voice ≤± 0. 03 ≤± 0. 03 ≤± 0. 03 ≤± 0. 03 ≤± 0. 03 ≤± 0. 03 V
Leakage flux <0.5 <0.5 <0.5 <0.5 <0.5 <0.5 mT
MTBF ≥ 20 0 0 ≥ 20 0 0 ≥ 20 0 0 ≥ 20 0 0 ≥ 20 0 0 ≥ 20 0 0 h

DESCRIPTIONS

Single-axis multi-function turntable is a mature and high precision single-axis speed measuring equipment , which is mainly usedin various position , speed and swing test and detection of rate gyro and its inertial measurement combination. After selecting the temperature control box , temperature control system , auxiliary shaft and other parts , the turntable can also be applied to theperformance test of inertial navigation devices and inertial navigation systems at high and low temperatures . The turntable

supporting computer has the ability to store the data related to the operation of the turntable , such as: time , turntable position ,Angle rate , real-time value of the temperature of the table , and has the ability to output data through the serial port , and can beoperated by an external computer (through the serial port) to control the turntable and temperature .
