PRODUCT ADVANTAGES
Temperature control test integrated software operation more efficient
It has good stability, dynamic characteristics and reliability
Digital and modular design based on DSP or FPGA
The system can provide communication interfaces such as serial port , network port and optical fiber for users to choose freely. Pro/ E , Ansys , Adams , Matlab and other design and simulation means are adopted. The system has high degree of software , scalability, good electromagnetic compatibility, reasonable structure , high precision , high stability and high dynamic.
SINGLE AXIS TURNTABLE
DESCRIPTIONS
|
|
Index |
1FV300 |
1 FV 500 |
1 FV 700 |
1FWV300 |
1FWV500 |
1FWV700 |
Unit |
| Structural form |
Vertical |
Vertical |
Vertical |
Vertical |
Vertical |
Vertical |
/ |
| Maximum load weight |
30 |
30/50 |
50/70 Optioanl |
30 |
30/50 |
50/70 Optioanl |
Kg |
| Table size |
Φ300 |
Φ500 |
Φ700 |
Φ300 |
Φ500 |
Φ700 |
mm |
| Mesa flatness |
0.02 |
0.03 |
0.03 |
0.02 |
0.03 |
0.03 |
mm |
| Table height |
350 |
650 |
850 |
350 |
650 |
850 |
mm |
| Face runout |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
mm |
| Rotation accuracy |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
″ |
| Angular position range |
±0〜 ±360 |
±0 〜 ±360 |
±0 〜 ±360 |
±0〜 ±360 |
±0 〜 ±360 |
±0 〜 ±360 |
° |
| Angular position accuracy |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
±1~3 |
″ |
| Angular resolution |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
° |
| Angular rate range |
0.001〜10000 |
0.001〜3000 |
0.001〜3000 |
0.001〜10000 |
0.001〜3000 |
0.001〜3000 |
°/s |
| Angular rate accuracy |
ω＜1 |
ω＜1 |
ω＜1 |
ω＜1 |
ω＜1 |
ω＜1 |
°/s |
|
1<ω＜10
10<ω
|
1<ω＜10
10<ω
|
1<ω＜10
10<ω
|
1<ω＜10
10<ω
|
1<ω＜10
10<ω
|
1<ω＜10
10<ω
|
|
| Speed smoothness |
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1° Average
10° Average
360 ° Average
|
| Max angular acceleration |
10000 |
4500 |
3000 |
10000 |
4500 |
3000 |
°/s2(Optional) |
|
Rocking function |
Optional |
Optional |
Optional |
Optional |
/ |
/ |
|
|
Rate resolution |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
0.0001 |
° |
| Slip ring number |
10~50 |
10~50 |
10~50 |
10~50 |
10~50 |
10~50 |
(Optioanl) |
| System bandwidth |
5~ 100Hz |
5~80Hz |
5~80Hz |
5~ 100Hz |
5~80Hz |
5~80Hz |
Hz(Optioanl) |
| Slip-ring voice |
≤± 0. 03 |
≤± 0. 03 |
≤± 0. 03 |
≤± 0. 03 |
≤± 0. 03 |
≤± 0. 03 |
V |
| Leakage flux |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
<0.5 |
mT |
| MTBF |
≥ 20 0 0 |
≥ 20 0 0 |
≥ 20 0 0 |
≥ 20 0 0 |
≥ 20 0 0 |
≥ 20 0 0 |
h |

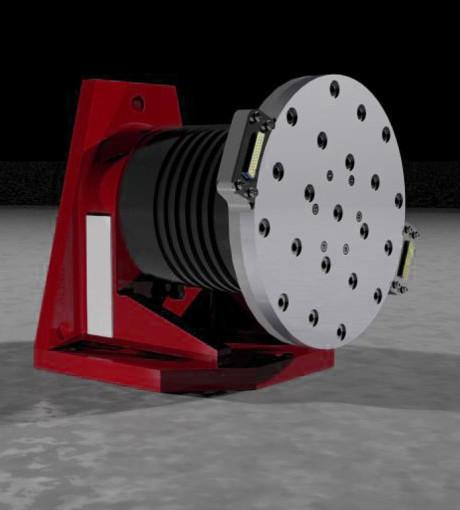

Single-axis multi-function turntable is a mature and high precision single-axis speed measuring equipment , which is mainly usedin various position , speed and swing test and detection of rate gyro and its inertial measurement combination. After selecting the temperature control box , temperature control system , auxiliary shaft and other parts , the turntable can also be applied to theperformance test of inertial navigation devices and inertial navigation systems at high and low temperatures . The turntable
supporting computer has the ability to store the data related to the operation of the turntable , such as: time , turntable position ,Angle rate , real-time value of the temperature of the table , and has the ability to output data through the serial port , and can beoperated by an external computer (through the serial port) to control the turntable and temperature .
|
|
Index |
1 FV 700 |
Unit |
| Structural form |
Vertical |
/ |
| Maximum load weight |
50/70 Optioanl |
Kg |
| Table size |
Φ700 |
mm |
| Mesa flatness |
0.03 |
mm |
| Table height |
850 |
mm |
| Face runout |
0.05 |
mm |
| Rotation accuracy |
±1~3 |
″ |
| Angular position range |
±0 〜 ±360 |
° |
| Angular position accuracy |
±1~3 |
″ |
| Angular resolution |
0.0001 |
° |
| Angular rate range |
0.001〜3000 |
°/s |
| Angular rate accuracy |
ω＜1 |
°/s |
|
1<ω＜10
10<ω
|
|
| Speed smoothness |
1 × 10 -3
1 × 10 -4
5 × 10 -5
|
1° Average
10° Average
360 ° Average
|
| Max angular acceleration |
3000 |
°/s2(Optional) |
|
Rocking function |
Optional |
|
|
Rate resolution |
0.0001 |
° |
| Slip ring number |
10~50 |
(Optioanl) |
| System bandwidth |
5~80Hz |
Hz(Optioanl) |
| Slip-ring voice |
≤± 0. 03 |
V |
| Leakage flux |
<0.5 |
mT |
| MTBF |
≥ 20 0 0 |
h |
